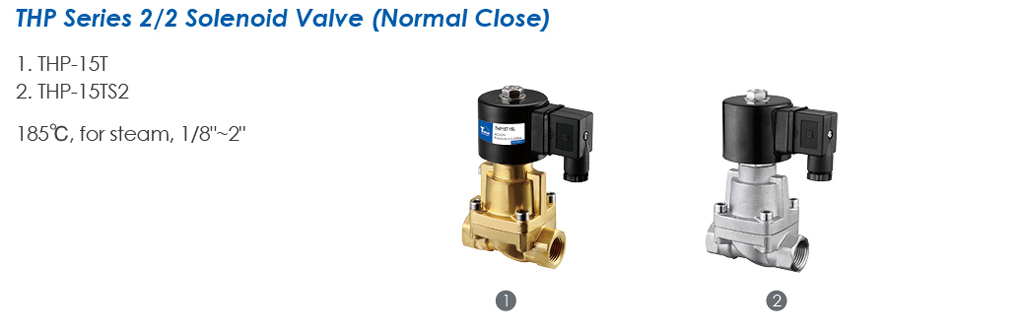

THP Series 2/2 Solenoid Valve ( Normal Open and Normal Close) |
|
|
| |
 |
|
THP series valves are pilot piston type 2/2 valves. Normal close and normal open is optional. Valves body have brass material and stainless steel material. The sealing material is Teflon. The working pressure for this solenoid valve is high to reach 2.5 MPa and the Max.temperature can be 185 ℃, especially used for high temperature fluid, like steam. Different thread types are available, including G, PT and NPT thread. Very popular around the world wide fluid control system. |
|
|
| |
|
|
| |
|
|
|
|
|
